caravan power lead to vehicle

Submitted: Wednesday, Jun 29, 2016 at 21:16
ThreadID: 132888 Views:1739 Replies:6 FollowUps:10
This Thread has been Archived
The center pin is live I don't understand why. it obviously comes from the caravan battery but for what purpose
Back Expand Un-Read 0 Moderator

Reply By: The Hob - Thursday, Jun 30, 2016 at 07:12

Thursday, Jun 30, 2016 at 07:12
I have 12 pins in my socket - what are you calling the centre pin

Alan
The Hob

Member
My Profile  Send Message

AnswerID: 601972

Follow Up By: 10 - Thursday, Jun 30, 2016 at 10:36

Thursday, Jun 30, 2016 at 10:36
circular 7PIN
0
FollowupID: 871541

Reply By: Gone Bush - Thursday, Jun 30, 2016 at 10:49

Thursday, Jun 30, 2016 at 10:49
10, you really need to provide more information.

Is your van a Bushtracker?

You don't seem to be a BOG Member so we don't know what sort of van you're talking about.

If it's not a BT it will be difficult to help you.

Stephen
I'm going where the sun keeps shining
Thru' the pouring rain,
Going where the weather suits my clothes.......

Member
My Profile  Send Message

AnswerID: 601976

Follow Up By: 10 - Thursday, Jun 30, 2016 at 17:32

Thursday, Jun 30, 2016 at 17:32
Yes BT owner 19ft 2007
0
FollowupID: 871568

Follow Up By: Gone Bush - Thursday, Jun 30, 2016 at 17:43

Thursday, Jun 30, 2016 at 17:43
OK, well in that case, I am just as perplexed as you are about a live centre pin.

I've looked at a few diagrams on the 'net for a large round 7 pin plug and they don't indicate that the centre pin should be live from the van batteries.

I have a large round 7 pin plug on my 2009 van but I'm not near it at the moment to check for you.

All I can suggest is that a previous owner, if there was one, could have rewired it to charge something in the tow vehicle.

It beats me.

Stephen
I'm going where the sun keeps shining
Thru' the pouring rain,
Going where the weather suits my clothes.......

Member
My Profile  Send Message

0
FollowupID: 871569

Follow Up By: Gone Bush - Thursday, Jun 30, 2016 at 18:56

Thursday, Jun 30, 2016 at 18:56
Here's a link to various wiring diagrams.

Trailer Plug Wiring Diagrams

Scroll down to the Large Round 7 Pin Plug and making the Centre Pin (#7) live doesn't make sense. It is used for rear lamps, clearance and side marker lamps.

However if you scroll to the next one, the Heavy Duty 7 Pin Round then it could make sense.

On that plug (especially if it's an aluminium plug) the Centre Pin (#7) is for Reversing/Auxiliary. So if your 2007 BT doesn't have reversing lights (and it probably doesn't) then it could have been wired to provide power to something in the vehicle.

Maybe it is providing power to your Brake Controller. Does your brake controller show any lights or any other indication that it's working when the van is NOT connected?

Let's hope that wire is fitted with a fuse.
Stephen
I'm going where the sun keeps shining
Thru' the pouring rain,
Going where the weather suits my clothes.......

Member
My Profile  Send Message

0
FollowupID: 871571

Follow Up By: Uncle Dodgy - Thursday, Jun 30, 2016 at 19:22

Thursday, Jun 30, 2016 at 19:22
Hi Guys

I agree with Gone Bush, it could be supplying the trailer break controller.
We have a 2000 BT 19ft, and our break controller draws power from the BT. Not sure which pin is involved though.
We always disconnect the trailer coupling when parked up as it is otherwise drawing from the BT Batteries.

Hope this helps
Cheers
John
John & Sharyn
Takin' the long way home - Towing a Bushtracker

Member
My Profile  Send Message
Classifieds: 3.6m Tinnie & Folding Trailer

0
FollowupID: 871572

Follow Up By: 10 - Thursday, Jun 30, 2016 at 20:02

Thursday, Jun 30, 2016 at 20:02
Thanks fellus I am inclined towards the pin supplying power for the van brakes but would like to know where it connects to the van battery and as you say hope there is a fuse because every now then when moving the plug for cleaning I get a flash Nought said for now unless someone really knows cheers Frank
0
FollowupID: 871577

Reply By: Mobi Condo - Thursday, Jun 30, 2016 at 20:48

Thursday, Jun 30, 2016 at 20:48
We have a live line as well. Seems that it runs power to house batteries and therefore will charge as we drive. Then when stationary, connected and solar charging we have current flow back to vehicle thus charging that as well! This has been measured via Multimeter just to see what was happening.
AnswerID: 601995

Follow Up By: 10 - Thursday, Jun 30, 2016 at 21:07

Thursday, Jun 30, 2016 at 21:07
All very much smart stuff would love to see the wiring diagram
0
FollowupID: 871583

Reply By: JohnS - Friday, Jul 01, 2016 at 05:44

Friday, Jul 01, 2016 at 05:44
When you pick up your BT new they used to give you a sheet with the layout of the large round plug. Because the vans then didn't have reversing lights, they use that pin as a feed from the vehicle to charge the van batteries. It has nothing to do with the van's brakes. If you get on to BT they will email you the layout and explanation.
AnswerID: 602003

Reply By: Gone Bush - Friday, Jul 01, 2016 at 06:53

Friday, Jul 01, 2016 at 06:53
If it's not the original tow vehicle, I wonder where that 12 volts is going to, in the vehicle, when the plug is plugged in.

Stephen
I'm going where the sun keeps shining
Thru' the pouring rain,
Going where the weather suits my clothes.......

Member
My Profile  Send Message

AnswerID: 602004

Follow Up By: 10 - Friday, Jul 01, 2016 at 07:53

Friday, Jul 01, 2016 at 07:53
I'm sure Steve will know I will give him a try
0
FollowupID: 871592

Follow Up By: JohnS - Saturday, Jul 02, 2016 at 05:36

Saturday, Jul 02, 2016 at 05:36
Stephen, I believe they used to install a blocking diode in the circuit. We had an 04 model we bought new but now have a 2011 model and on it the feed is via an andersons plug. Hope that helps.
John
0
FollowupID: 871632

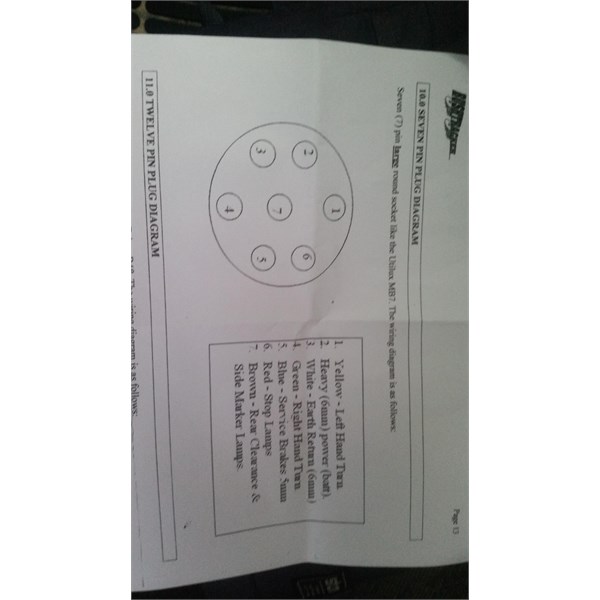

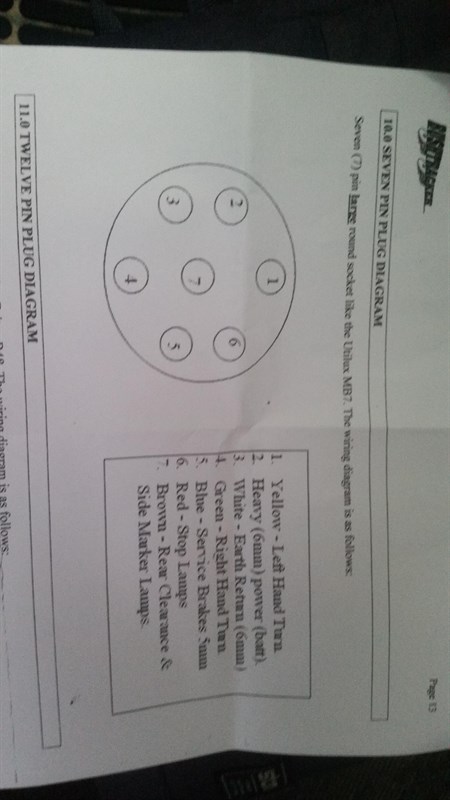

Reply By: gra and aud - Tuesday, Jul 05, 2016 at 08:03

Tuesday, Jul 05, 2016 at 08:03
AnswerID: 602097

Follow Up By: 10 - Wednesday, Jul 06, 2016 at 14:13

Wednesday, Jul 06, 2016 at 14:13
Thanks Gra and Aud BUT my problem is about the center pin in the plug out of the caravan


0
FollowupID: 871746
